Fiber Laser Cutting Machine Single table

S series is customers’ best choice in the metal industry

  • The bed is welded by a precise welding process after annealing and aging treatment;
  • The beam is airborne aluminum castings;
  • The running speed of the machine can reach 80-100 m/min;
  • Working size could be customized;
  • Power from 1kw to 6kw;
ModelBQ3015SBQ4020SBQ6020SBQ6015S
Work Area3000*1500mm4000*2000mm6000*2000mm6000*1500mm
Z-axis Travel120mm
Working tableSawtooth-table
Laser Wave Length 1064nm
Positioning accuracy±0.05mm
Repeated positioning±0.02mm
Maximum speed100m/min
Maximum acceleration1G
Working life of laser100000hours
Auxiliary Gas oxygen,nitrogen,air
Power parametersThree-phase AC 380V 50Hz
Protection Level of PowerIP54

Machine Body Feature

Main parts

CUTTING RANGE
Material1000w1500w 2000w3000w4000w6000w
Carbon steel(mm) 0.4-120.4-140.4-160.4-180.4-200.4-22
Stainless steel(mm) 0.4-50.4-50.4-60.4-80.4-100.4-14
APPLICATION
Could cut: carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.

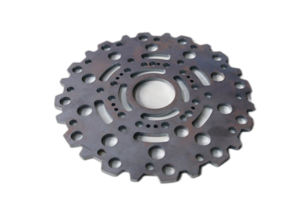

Cutting Samples
