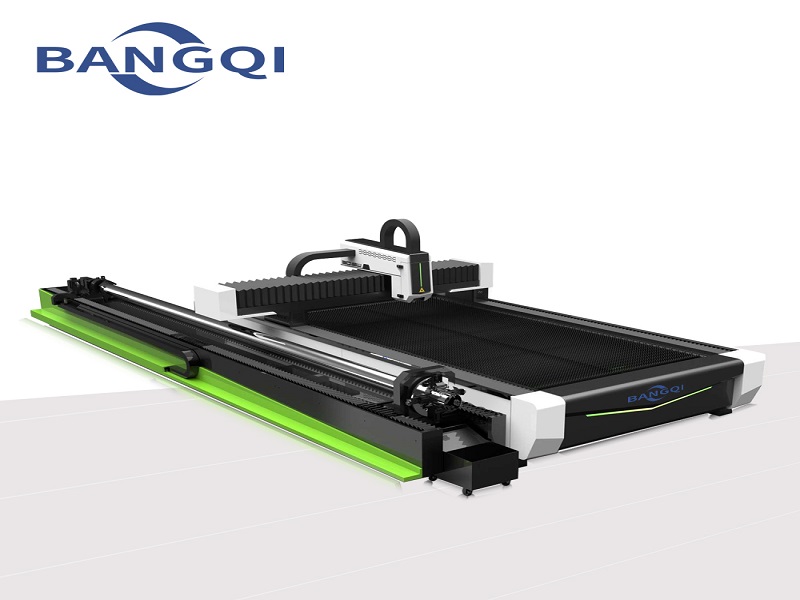

Plate And Tube Fiber Laser Cutting Machine

C series is customers’ best choice for metal sheets and tube cutting

The running speed of the machine can reach 80 m/min.
Option: 3 meters and 6 meters for pipe cutting.
Open type machine with a single table.

Category: Fiber Laser Cutting Machine

PARAMETERS
Model	BQ3015C	BQ4020C	BQ6020C	BQ6015C
Work Area	3000*1500mm	4000*2000mm	6000*2000mm	6000*1500mm
Z-axis Travel	120mm
Tube Diameter	Round tube: max 220mm, square tube max 150*150mm
Working table	Sawtooth-table
Laser Wave Length	1064nm
Positioning accuracy	±0.05mm
Repeated positioning	±0.02mm
Maximum speed	80m/min
Maximum acceleration	0.8G
Working life of laser	100000hours
Auxiliary Gas	oxygen,nitrogen,air
Power parameters	Three-phase AC 380V 50Hz
Protection Level of Power	IP54

Machine Body Feature

Main parts

CUTTING RANGE
Material	1000w	1500w	2000w	3000w	4000w	6000w
Carbon steel（mm）	0.4-12	0.4-14	0.4-16	0.4-18	0.4-20	0.4-22
Stainless steel（mm）	0.4-5	0.4-5	0.4-6	0.4-8	0.4-10	0.4-14
APPLICATION
Could cut: carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.

Cutting Samples
